珍寶小型VRF-J IIS系列

AIRSTAGE™ J-IIS Series

Fujitsu General provides air conditioning systems for a wide range of applications from small office buildings and stores to large houses.

Photo of outdoor unit

Features

It Can be Easily Carried and Installed Obscure Place

  • Small and light weight outdoor unit
  • Low sound level design
  • Advanced high efficiency technology
  • Long piping length

More Comfort

  • Non-stop oil recovery operation
  • Easier Installation

Outdoor units

  • AJY040LCLAH
  • AJY045LCLAH
  • AJY054LCLAH





Features

It Can be Easily Carried and Installed Obscure Place

Small and light weight outdoor unit

Current model / 6 HP class Height:1334 mm Weight:117 kg

This model is much more compact than conventional 6HP comparable outdoor units. Even when installed on the balcony it fits within the height of the fence. The compact size with a height of less than 1 m allows it to be installed under windows and in tight spaces.

Installed images.



Low sound level design

Significantly low sound level is improved by using DC twin rotary compressor, inverter technology, and advanced airflow structure design.

Image of Low sound level design.



Lower noise operation is possible by low noise mode than rated noise level.

Image of Lower noise operation.



Advanced high efficiency technology

Image of Advanced high efficiency technology.

Image of Large propeller fan

Large propeller fan

High performance and low noise realized by large propeller and optimization of angle.



Image of DC fan motor.

DC fan motor

Miniaturized, low noise, high efficiency, multi-stage DC fan motor is mounted.



Image of Large heat exchanger.

Large heat exchanger

Heat exchange performance is substantially improved by mounting of 3-row large heat exchanger.
IHigh heat transfer copper tube (Improved lead angle)



Image of Smooth airflow grille.

Smooth airflow grille

This grille was aerodynamically designed for good efficiency with little blow loss.



Image of DC inverter control.

DC inverter control

Efficiency is improved by mounting of new active filter module.



Image of Low noise rubber, High efficiency compressor motor, Optimized refrigerant flow design, Highly accurate parts.

Compact and high performance DC twin rotary compressor

Efficiency in all load regions is good. Especially good performance from low to medium at normal operation.

Image of Compact and high performance DC twin rotary compressor.



Long piping length

Our advanced refrigerant control technology allows us to achieve a total refrigerant piping length of 80 m. This opens up new possibilities in system design.

Image of Long piping length.

More Comfort

Non-stop oil recovery operation

A comfortable room condition is maintained during oil recovery mode because the product continues to operate without stopping the cooling or heating operation.

Image of Non-stop oil recovery operation.

Easier Installation

Connection check function :
Possible to confirm whether wiring connection and address setting are correct by a quick check run function.

Image of Easier Installation.





Rating Capacity range 4HP

AJY040LCLAH



Outdoor units

Features

It Can be Easily Carried and Installed Obscure Place

  • Small and light weight outdoor unit
  • Low sound level design
  • Advanced high efficiency technology
  • Long piping length

More Comfort

  • Non-stop oil recovery operation
  • Easier Installation



Specifications

Rating Capacity range 4HP
Model name AJY040LCLAH
Maximum Connectable Indoor Unit 7
Power source 230V, 1Φ, 50Hz
Capacity Cooling  12.1kW  Heating 13.6kW
Input power Cooling  3.44kW  Heating 3.09kW
EER Cooling  3.52W/W
COP Heating  4.40W/W
Air flow late 4,040m³/h
Sound pressure level Cooling  51dB(A)  Heating 54dB(A)
Heat exchanger fin Blue fin
Dimensions 998(H) × 970(W) × 370(D)mm
Weight 86kg
Connection pipe diameter Liquid φ9.52mm
Gas φ15.88mm
Total pipe length 80m
Max. Height difference 30m
Operation range Cooling  -5 to 46°CDB
Heating -20 to 21°CDB
Note :
Specifications are based on the following conditions.
Cooling :
Indoor temperature of 27°CDB / 19°CWB, and outdoor temperature of 35°CDB / 24°CWB.
Heating :
Indoor temperature of 20°CDB / (15°CWB), and outdoor temperature of 7°CDB / 6°CWB.
Pipe length :
7.5 m; Height difference between outdoor unit and indoor unit : 0 m.
The protective function may work when using it outside the operation range.

Dimensions

Outdoor Dimensions : 998(H) × 970(W) × 370(D)mm



Rating Capacity range 5HP

AJY045LCLAH



Outdoor units

Features

It Can be Easily Carried and Installed Obscure Place

  • Small and light weight outdoor unit
  • Low sound level design
  • Advanced high efficiency technology
  • Long piping length

More Comfort

  • Non-stop oil recovery operation
  • Easier Installation



Specifications

Rating Capacity range 5HP
Model name AJY045LCLAH

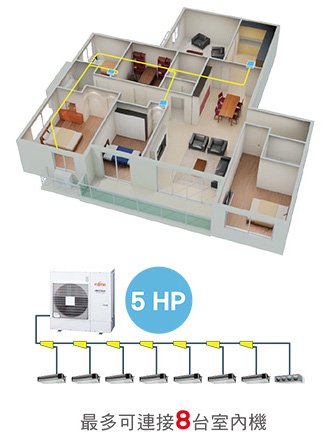

Maximum Connectable Indoor Unit 8
Power source 230V, 1Φ, 50Hz
Capacity Cooling  14.0kW  Heating 16.0kW
Input power Cooling  4.43kW  Heating 3.93kW
EER Cooling  3.16W/W
COP Heating  4.07W/W
Air flow late 4,200m³/h
Sound pressure level Cooling  53dB(A)  Heating 55dB(A)
Heat exchanger fin Blue fin
Dimensions 998(H) × 970(W) × 370(D)mm
Weight 86kg
Connection pipe diameter Liquid φ9.52mm
Gas φ15.88mm
Total pipe length 80m
Max. Height difference 30m
Operation range Cooling  -5 to 46°CDB
Heating -20 to 21°CDB
Note :
Specifications are based on the following conditions.
Cooling :
Indoor temperature of 27°CDB / 19°CWB, and outdoor temperature of 35°CDB / 24°CWB.
Heating :
Indoor temperature of 20°CDB / (15°CWB), and outdoor temperature of 7°CDB / 6°CWB.
Pipe length :
7.5 m; Height difference between outdoor unit and indoor unit : 0 m.
The protective function may work when using it outside the operation range.

Dimensions

Outdoor Dimensions : 998(H) × 970(W) × 370(D)mm



Rating Capacity range 6HP

AJY054LCLAH

Feature

Optional Parts

Dimentions

Specification

Outdoor units

Features

It Can be Easily Carried and Installed Obscure Place

  • Small and light weight outdoor unit
  • Low sound level design
  • Advanced high efficiency technology
  • Long piping length

More Comfort

  • Non-stop oil recovery operation
  • Easier Installation



Specifications

Rating Capacity range 6HP
Model name AJY054LCLAH
Maximum Connectable Indoor Unit 8
Power source 230V, 1Φ, 50Hz
Capacity Cooling  15.1kW  Heating 16.5kW
Input power Cooling  5.32kW  Heating 4.26kW
EER Cooling  2.84W/W
COP Heating  3.87W/W
Air flow late 4,200m³/h
Sound pressure level Cooling  54dB(A)  Heating 56dB(A)
Heat exchanger fin Blue fin
Dimensions 998(H) × 970(W) × 370(D)mm
Weight 87kg
Connection pipe diameter Liquid φ9.52mm
Gas φ15.88mm
Total pipe length 80m
Max. Height difference 30m
Operation range Cooling  -5 to 46°CDB
Heating -20 to 21°CDB
Note :
Specifications are based on the following conditions.
Cooling :
Indoor temperature of 27°CDB / 19°CWB, and outdoor temperature of 35°CDB / 24°CWB.
Heating :
Indoor temperature of 20°CDB / (15°CWB), and outdoor temperature of 7°CDB / 6°CWB.
Pipe length :
7.5 m; Height difference between outdoor unit and indoor unit : 0 m.
The protective function may work when using it outside the operation range.

Dimensions

Outdoor Dimensions : 998(H) × 970(W) × 370(D)mm



Airstage™ (VRF Systems)

Optional Parts

Connection Units

Separation Tube

UTP-AX054A

Gas Pipe

Liquid Pipe

UTP-AX090A

Gas Pipe

Liquid Pipe

UTP-AX180A

Gas Pipe

Liquid Pipe

UTP-AX567A

Gas Pipe

Liquid Pipe

Model name UTP-AX054A UTP-AX090A UTP-AX180A UTP-AX567A
Total cooling capacity of indoor unit 19.6kW or less 28.0kW or less 28.1kW to 56.0kW 56.1kW or more

UTP-BX090A

Suction Gas Pipe

Discharge Gas Pipe

Liquid Pipe

UTP-BX180A

Suction Gas Pipe

Discharge Gas Pipe

Liquid Pipe

UTP-BX567A

Suction Gas Pipe

Discharge Gas Pipe

Liquid Pipe

Model name UTP-BX090A UTP-BX180A UTP-BX567A
Total cooling capacity of indoor unit 28.0kW or less 28.1kW to 56.0kW 56.1kW or more

Header

UTR-H0906L
UTR-H1806L

Gas Pipe

Liquid Pipe

UTR-H0908L
UTR-H1808L

Gas Pipe

Liquid Pipe

UTP-J0906A
UTP-J1806A

Suction Gas Pipe

Discharge Gas Pipe

Liquid Pipe

UTP-J0908A
UTP-J1808A

Suction Gas Pipe

Discharge Gas Pipe

Liquid Pipe

Model name 3-6 Branches UTR-H0906L
UTP-J0906A
UTR-H1806L
UTP-J1806A
3-8 Branches UTR-H0908L
UTP-J0908A
UTR-H1808L
UTP-J1808A
Total cooling capacity of indoor unit 28.0kW or less 28.1kW to 56.0kW

Outdoor Unit Branch Kit

UTP-CX567A

Gas Pipe
Liquid Pipe

UTP-DX567A

Suction Gas Pipe
Discharge Gas Pipe
Liquid Pipe

Model name UTP-CX567A (for V-II) UTP-DX567A (for VR-II)
Number of Outdoor unit 2 outdoor units 1
3 outdoor units 2

EV Kit


For Compact Wall Mounted type
Model code ≤ 09 : UTR-EV09XB
Model code ≥ 12 : UTR-EV14XB

Model name UTR-EV09XB UTR-EV14XB
Application Model ASYE04GACH
ASYE07GACH
ASYE09GACH
ASYE12GACH
ASYE14GACH


RB Unit

Single type
UTP-RX01AH / UTP-RX01BH / UTP-RX01CH

Multi type
UTP-RX04BH

Type Single type Multi type
Model name UTP-RX01AH UTP-RX01BH UTP-RX01CH UTP-RX04BH
Power source Single phase 230V, 50Hz
Input power 17W 24W 31W 96W
Number of branches 1 1 1 4
Maximum capacity of connectable indoor units(Q) Q ≤ 8.0kW Q ≤ 18.0kW Q ≤ 28.0kW Q ≤ 56.0kW *1
Maximum capacity of connectable indoor units per branch(Q) Q ≤ 8.0kW Q ≤ 18.0kW Q ≤ 28.0kW Q ≤ 18.0kW
Maximum number of connectable indoor units per branch 3 8 8 8
Dimensions 198(H) × 298(W) × 268(D)mm 260(H) × 658(W) × 428(D)mm

*1 : In case of two RB units connected in series ( total 8-branches ), maximum capacity of connectable indoor units is up to 56.0kW.



Controllers

For Individual Control

Wired Remote Controller(Touch Panel )

UTY-RNRY

Wired Remote Controller

UTY-RLRY

Simple Remote Controller

UTY-RSKY
With operation mode

Simple Remote Controller

UTY-RHKY
Without operation mode

Wireless Remote Controller

UTY-LNHY

IR Receiver Unit

UTB-YWC
For All Duct type

IR Receiver Unit

UTY-LRHYB1
For Cassette type



For Centralized Control

Group Remote Controller

UTY-CGGY

Central Remote Controller

UTY-DCGY

Touch Panel Controller

UTY-DTGY

System Controller Lite (Software)

UTY-ALGX

System Controller (Software)

UTY-APGX




Convertors / Adaptors

For External device

BACnet® Gateway(Software)

UTY-ABGX

Network Convertor
for LONWORKS®

UTY-VLGX

KNX® Interface


FJ-RC-KNX-1i

MODBUS® Interface

FJ-RC-MBS-1

Wireless LAN Interface


FJ-RC-WIFI-1

External Switch Controller

UTY-TEKX

For System expansion

Network Convertor

UTY-VGGXZ1

Signal Amplifier

UTY-VSGXZ1



Panels

For Cassette type

Cassette Grille

UTG-UFYC-W

For Compact Cassette type

Cassette Grille

UTG-UGYA-W

For Cassette type




Others

Communication system: External Connect Kit

For Indoor unit

UTY-XWZXZ7

UTY-XWZXZB

UTY-XWZXZC

UTY-XWZXZD

UTY-XWZXZE

For Outdoor unit

UTY-XWZXZ6

UTY-XWZXZ9

For RB unit


UTY-XWZXZ6

UTY-XWZXZB

For Central Remote Controller

UTY-XWZXZ7

UTY-XWZXZ8

UTY-XWZXZA

For Touch Panel Controller

UTY-XWZXZA

Function list

  Indoor unit Outdoor unit Controller Other
Central Remote Controller Touch Panel Controller RB Unit
Input Operation / Stop Dry ContactUTY-XWZXZD
Apply VoltageUTY-XWZXZB

All On / All Off     Dry ContactUTY-XWZXZ7
Apply VoltageUTY-XWZXZ8

Batch Stop   Dry ContactUTY-XWZXZ6
Forced Stop Dry ContactUTY-XWZXZD
Apply VoltageUTY-XWZXZB

Emergency Stop Dry ContactUTY-XWZXZD
Apply VoltageUTY-XWZXZB
Dry ContactUTY-XWZXZ6 Dry ContactUTY-XWZXZ7
Apply VoltageUTY-XWZXZ8

Forced Thermostat off Dry ContactUTY-XWZXZE
Apply VoltageUTY-XWZXZ7

Low Noise Mode Operation   Dry ContactUTY-XWZXZ6
Cooling / Heating Priority   Dry ContactUTY-XWZXZ6*1     Dry ContactUTY-XWZXZ6
Apply VoltageUTY-XWZXZB
"Outdoor Unit Operation Peak Control"   Dry ContactUTY-XWZXZ6
"Power Usage Information from Electricity Meter"   Dry ContactUTY-XWZXZ6
Output Operation Status Dry ContactUTY-XWZXZC Apply VoltageUTY-XWZXZ6 Apply VoltageUTY-XWZXZA Apply VoltageUTY-XWZXZA
Error Status Dry ContactUTY-XWZXZC Apply VoltageUTY-XWZXZ6 Apply VoltageUTY-XWZXZA Apply VoltageUTY-XWZXZA
Indoor Unit Fun Operation Status Dry ContactUTY-XWZXZC
Auxiliary Heater Output Dry ContactUTY-XWZXZC*2
Base Heater   Dry ContactUTY-XWZXZ9

*1 : Heat Pump type only   *2 : Duct type only. : Dry Contact   : Apply Voltage



For Duct typet

Flange (Round)

UTD-RF204

For Medium Static Pressure Duct type
Ceiling type

Flange (Square)

UTD-SF045T

For Medium Static Pressure Duct type

Remote Sensor Unit

UTY-XSZX

For All Duct type

New amenity space can be offered by installing the Remote sensor.

Long-Life Filter

UTD-LF25NA

For Medium Static Pressure Duct type

UTD-LF60KA

For High Static Pressure Duct type (ARXC36/45/60GATH)

Auto Louver Grille Kit

UTD-GXSA-W
(for ARXD04 / 07 / 09 / 12 / 14GALH)
UTD-GXSB-W
(for ARXD18GALH)
UTD-GXSC-W
(for ARXD24GALH)

For Slim Duct type

Drain Pump Unit

UTZ-PX1BBA

For Low Static Pressure Duct type

UTZ-PX1NBA

For Medium Static Pressure Duct type

For Cassette type

Wide Panel

UTG-AGYA-W

For Cassette type

Panel Spacer

UTG-BGYA-W

For Cassette type

Insulation Kit for High Humidity

UTZ-KXGA For Cassette type
UTZ-KXGB For Slim Cassette type
UTZ-KXGC For Compact Cassette type

Fresh Air Intake Kit

UTZ-VXAA

For Compact Cassette type

UTZ-VXGA

For Cassette type

Air Outlet Shutter Plate

UTR-YDZB

For Compact Cassette type

Shuts the air outlet when only using as 3 blow out.

Air Outlet Shutter Plate

UTR-YDZC

For Cassette type

Shuts the air outlet when only using as 3 blow out.



For Ceiling type

Drain Pump Unit

UTR-DPB24T

For Ceiling type




Airstage™ (VRF Systems)

Indoor Unit Lineup

12 Types, 55 Models, Capacity range from 1.1kW to 25.0kW

The AIRSTAGE™ indoor units were developed to be highly efficient, compact, low noise, and to have user friendly operation. Care was also taken with the design to make they go well with the interior decoration and to be easy to install and maintain.
Further, a variety of options are available to achieve an air conditioning environment that is more desirable from the user's perspective.





Cassette Type

Capacity range 1.1kW 2.2kW 2.8kW 3.6kW 4.5kW 5.6kW 7.1kW
Model code 4 7 9 12 14 18 24
Compact Cassette
AUXB04GALH AUXB07GALH AUXB09GALH AUXB12GALH AUXB14GALH AUXB18GALH AUXB24GALH
Capacity range 5.6kW 7.1kW 9.0kW 11.2kW 12.5kW 14.0kW
Model code 18 24 30 36 45 54
Cassette
AUXD18GALH AUXD24GALH AUXA30GALH AUXA36GALH AUXA45GALH AUXA54GALH

Duct Type

Capacity range 1.1kW 2.2kW 2.8kW 3.6kW 4.5kW 5.6kW 7.1kW
Model code 4 7 9 12 14 18 24
Low Static Pressure Duct
  ARXB07GALH ARXB09GALH ARXB12GALH ARXB14GALH ARXB18GALH
Slim Duct
(Drain pump internal)
ARXD04GALH ARXD07GALH ARXD09GALH ARXD12GALH ARXD14GALH ARXD18GALH ARXD24GALH
Capacity range 7.1kW 9.0kW 11.2kW 12.5kW 18.0kW 22.4kW 25.0kW
Model code 24 30 36 45 60 72 90
Medium Static Pressure Duct
ARXA24GBLH ARXA30GBLH ARXA36GBLH ARXA45GBLH
High Static Pressure Duct
    ARXC36GATH ARXC45GATH ARXC60GATH* ARXC72GATH* ARXC90GATH*

Floor Type

Capacity range 1.1kW 2.2kW 2.8kW 3.6kW 4.5kW 5.6kW 7.1kW
Model code 4 7 9 12 14 18 24
Floor
(*Same as Ceiling models)
      ABYA12GATH ABYA14GATH ABYA18GATH ABYA24GATH
Concealed Floor
(*Same as Low Static Pressure Duct models)
  ARXB07GALH ARXB09GALH ARXB12GALH ARXB14GALH ARXB18GALH
Slim Concealed Floor
(*Same as Slim Duct models)
ARXD04GALH ARXD07GALH ARXD09GALH ARXD12GALH ARXD14GALH ARXD18GALH ARXD24GALH

Ceiling Type

Capacity range 3.6kW 4.5kW 5.6kW 7.1kW 9.0kW 11.2kW 12.5kW 14.0kW
Model code 12 14 18 24 30 36 46 54
Ceiling
ABYA
12GATH
ABYA
14GATH
ABYA
18GATH
ABYA
24GATH
ABYA
30GATH
ABYA
36GATH
ABYA
45GATH
ABYA
54GATH

Wall Mounted Type

Capacity range 1.1kW 2.2kW 2.8kW 3.6kW 4.5kW 5.6kW 7.1kW 9.0kW
Model code 4 7 9 12 14 18 24 30
Wall Mounted
ASYA
04GACH
ASYA
07GACH
ASYA
09GACH
ASYA
12GACH
ASYA
14GACH
ASYA
18GACH
ASYA
24GACH
ASYA
30GACH
Wall Mounted
ASYE
04GACH
ASYE
07GACH
ASYE
09GACH
ASYE
12GACH
ASYE
14GACH

With this model, connection of EV kit is necessary.

                        Room Air
Model               Nominal Capacity Indoor         Dimensions      Circulation    (Sound Pressure)
                        Cooling kW Heating kW           (HxWxD) mm  (high) m3/h   dB(A) L / M / H

Compact Duct
ARXA07LALR           2.15           2.45               217x663x595       420                 31 / 32 / 34
ARXA09LALR           2.80           3.10               217x663x595       420                 31 / 32 / 34
ARXA12LALR           3.50           4.10               217x953x595       620                 27 / 29 / 33
ARXA14LALR           4.00           4.80               217x953x595       620                 27 / 29 / 33
ARXA18LALR           5.30           5.60               217x953x595       950                 30 / 35 / 40
ARXA22LALR           6.00           6.30               217x953x595       890                 34 / 38 / 42
Duct
AR25UFAAR            7.05            7.85               270x1210x700    1200                 40 / 42 / 44
AR30UFAAR            8.80           9.10               270x1210x700    1200                 40 / 42 / 44
AR36UFAAR          10.50          10.70               270x1210x700    2200                 45 / 47 / 49
AR45UFAAR          12.70          13.70               270x1210x700    2200                 45 / 47 / 49
Compact Cassette
AU7UFAAR              2.15           2.45                230x570x570        530                31 / 35 / 38
AU9UFAAR              2.80           3.10                230x570x570        530                31 / 35 / 38
AU12UFAAR            3.60           4.10                230x570x570        580                34 / 37 / 41
AU14UFAAR            4.00           4.50                230x570x570        580                34 / 37 / 41
AU18UFAAR            5.00           5.45                230x570x570        640                35 / 38 / 44
Cassette
AU20UFARR            5.70           5.80                246x830x830       1030                37 / 38 / 42
AU25UFARR            7.05           7.85                246x830x830       1170                39 / 40 / 42
AU30UFARR            8.80           9.10                246x830x830       1270                39 / 42 / 45
AU36UFASR          10.50          10.70                296x830x830      1500                41 / 44 / 48
AU45UFASR          12.70          13.70                296x830x830      1650                43 / 47 / 49
AU54UFASR          14.10          15.80                296x830x830      1780                45 / 49 / 52
Compact Wall Mounted
AS7UFADR            2.15             2.45               257x808x187        410                 26 / 27 / 30
AS9UFADR            2.80             3.10               257x808x187        500                 30 / 33 / 36
AS12UFADR          3.50             4.10               257x808x187        540                 34 / 37 / 39
AS14UFADR          3.80             4.50               257x808x187        540                 34 / 37 / 39
Wall Mounted
AS18UFAJR           5.40             5.60               320x1120x220      840                  35 / 39 / 42
AS24UFAJR           6.90             7.80               320x1120x220      950                  37 / 41 / 45
AS30UFAJR           8.00             8.80               320x1120x220     1050                 41 / 45 / 48



大金商用空調
三菱電機商用空調
三菱電機小型卡式商用空調
大金(家用多功能VRV系列)
大金VRV X 系列
三菱電機(VRV系列)
珍寶小型多聯式系統
珍寶小型VRF-J IIS系列
分體式冷氣運轉原理
VRV運作原理
變頻空調系列
冷熱交換器HRV
綠色產品-空氣能熱水爐
首頁產品價目空調/冷熱交換器維修/安裝服務空調維修保養服務工程記錄相片冷氣空調產品智識Contact Me關於冷氣新知服務
